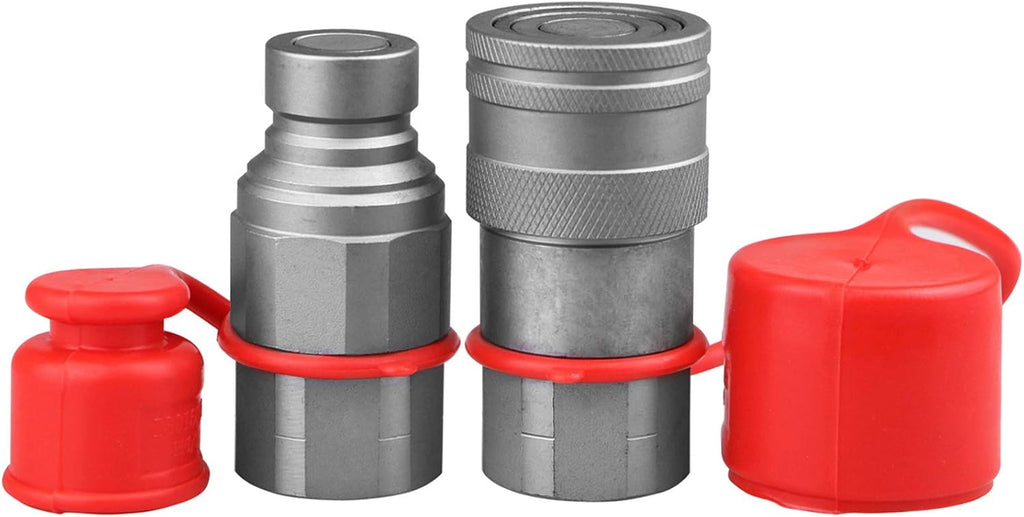

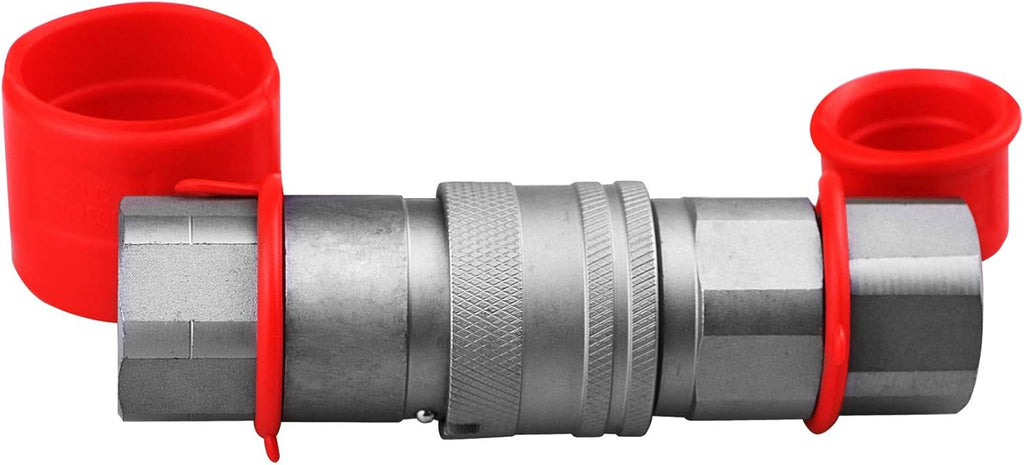

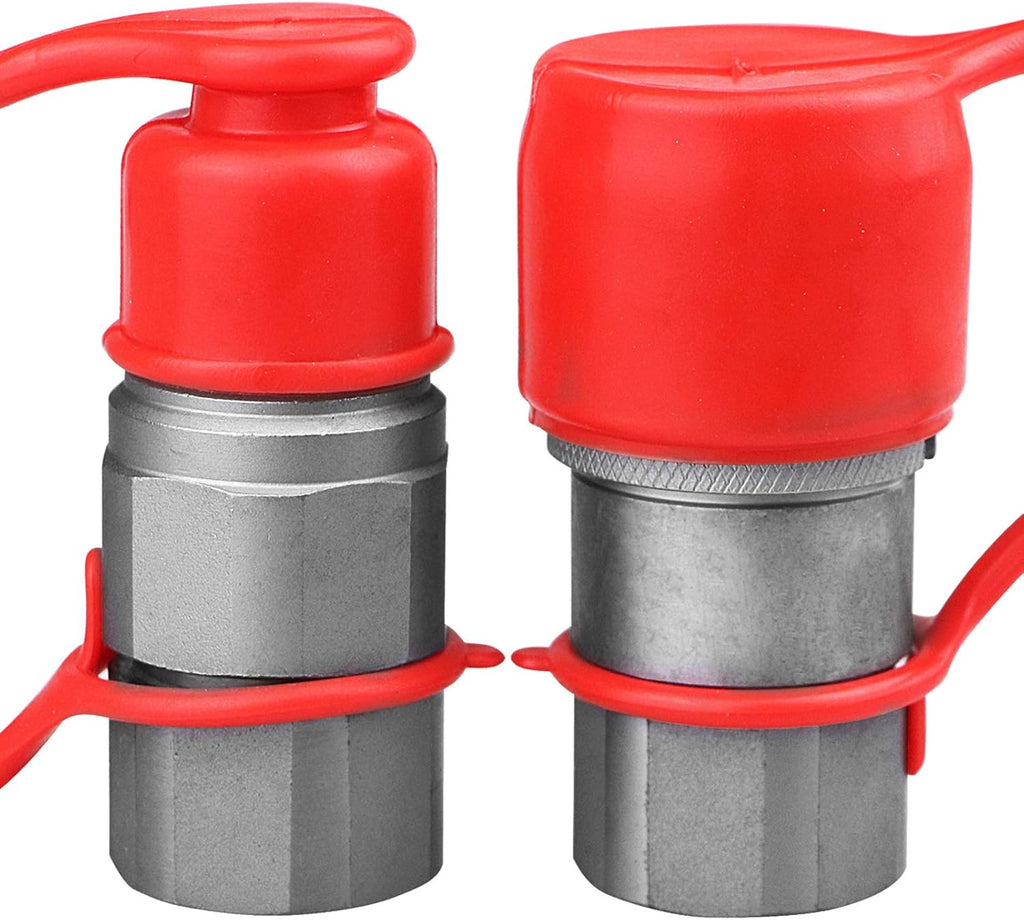

1/2 SAE Flat Face Hydraulic Quick Connect Couplers, ISO 16028, Pack of 2 D3484
1/2 SAE Flat Face Hydraulic Quick Connect Couplers, ISO 16028, Pack of 2 D3484
The flat face hydraulic quick connect couplers with 1/2” ISO Body Size + 1/2” SAE (¾-16” O-Ring Boss) port thread,impoved design high flow performance and maximum service life
The universal quick disconnect coupler connect interchangeable with other ISO 16028 standard hydraulic couplings for most models of skid steers loaders including Bobcat Case / New Holland, Kubota.
Non-spill flush face valves minimize fluid losses,with 5,076 PSI rating,23.78 GPM Max Flow Rat,12 GPM Nominal Flow Rate
Made by harden steel construction with zinc nickel plating for superior corrosion resistance ,and one hand push-to-connect operation
Flush face valve design minimizes fluid loss and air inclusion,locking sleeve to prevent accidental disconnection
1/2' SAE Flat Face Hydraulic Quick Connect Coupler Set w/Dust Caps,1/2”Body+ 1/2” SAE (3/4'-16 ORB)Port Thread
Interchangeable with other ISO 16028 standard couplings
Features:
Hex: 1.42”/36mm,Connected Length: 5.61” /142mm
Female Length: 3.43”/87mm,Male Length: 2.87”/73mm
Female Face Diameter: 1.50”/38mm,Male Face Diameter: 0.94”/24.5mm
5,076 PSI rating, 23.78 GPM Max Flow Rat, 12 GPM Nominal Flow Rate
Applications:
Used in the agriculture, construction, logging industries etc,skid loader attachment,hydraulic tools,Agricultural implements,equipment attachments, drain lines,constructionindustrial hydraulic lines
Made by harden steel construction with zinc nickel plating for superior corrosion resistance ,and one hand push-to-connect operation
